In the world of electronics, heat is both a friend and a foe. It’s a natural byproduct of performance — but if not managed well, it can shorten component lifespan, reduce efficiency, and even lead to failure. That’s why thermal management plays such an important role in everything from smartphones to AI servers.

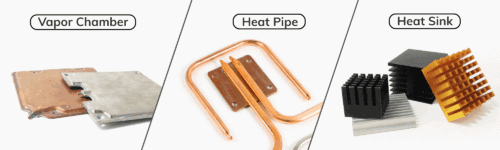

In this blog, we’ll explore the 3 most common passive cooling solutions for electronics — vapor chamber vs heat pipe vs heat sink — and help you understand how they work, where they shine, and when to use them.
Fundamentals: Why Thermal Management Matters
Every electronic device generates heat as it operates. Without proper thermal control, that heat builds up, causing overheating and degraded performance. Effective thermal management solutions spread, transfer, and dissipate this heat away from critical components for electronic cooling.
The goal is simple: keep your devices running efficiently, safely, and reliably — no matter how demanding the application.
1. Vapor Chambers: Effective 2D Heat Spreading
How they work:
A copper or aluminum vapor chamber is a flat, sealed structure filled with a small amount of liquid (mainly water, sometimes methanol or ammonia). When heat is applied to one area, the liquid evaporates and travels as vapor to cooler regions, where it condenses back into liquid. This phase-change process allows heat to spread quickly and evenly across the entire surface. The effective heat conductivity is around 10,000-50,000 W/m·K for this spreading applications.
Key advantages:
- Excellent 2D heat spreading: Ideal for high-power or uneven heat loads.
- Uniform temperature distribution: Reduces hotspots on large surfaces like CPUs or GPUs.
- Thin and lightweight: Perfect for compact, high-performance devices.
Typical applications:
Laptops, gaming consoles, high-end graphics cards, and 5G equipment.
When to choose a vapor chamber:
If your design requires efficient heat spreading across a flat area or has multiple heat sources close together, a vapor chamber delivers the best compact device thermal cooling solution.
2. Heat Pipes: Reliable Linear Thermal Transfer
How they work:
The cooling technology of heat pipe is a sealed metal tube that also uses liquid-vapor phase change. Heat applied at one end (the evaporator) turns the liquid into vapor, which moves to the cooler end (the condenser) to release heat. The condensed liquid then returns via a wick structure or gravity, creating a continuous cycle. For distances up to 200mm, the thermal conductivity can range from 6,000-28,000 W/m·K while the heat transfer decreases with bends and length.
Key advantages:
- Efficient 1D heat transfer: Moves heat from point A to point B effectively.
- Flexible and lightweight: Can be bent to fit tight spaces or complex layouts.
- Cost-effective: A reliable choice for most electronics cooling systems.
Typical applications:
Notebooks, LED lights, power electronics, automotive sensors, and industrial control systems.
When to choose a heat pipe:
When your challenge is transferring heat from one localized source to a remote heat sink — especially when space and cost are constraints in your electronics.
3. Heat Sinks: The Classic Cooling Solution
How they work:
A heat sink is a block of metal (usually aluminum or copper) designed with fins that increase surface area. The design of heat sink can be varied from its materials, density of fins, shapes and sizes. It absorbs heat from components and releases it into the surrounding air, often assisted by fans or forced airflow.
Key advantages:
- Simple and durable: No moving parts or fluids.
- Low-cost and customizable: Easy to manufacture and adapt to different applications.

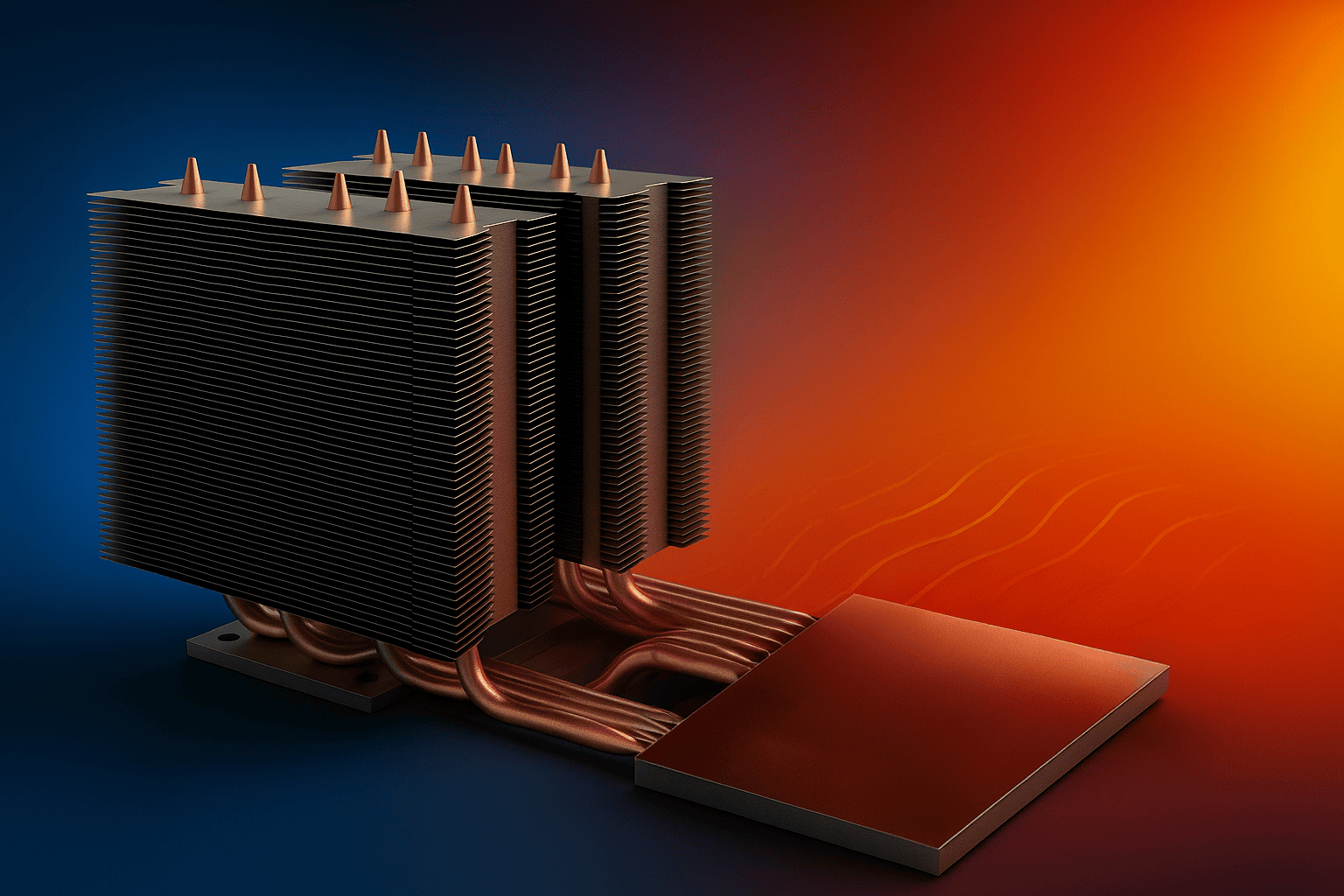

- Works well with other solutions: In normal cases, it can be paired with thermal grease (paste) or thermal pad. For enhanced performance, it can be applied with heat pipes or vapor chambers.
Typical applications:
Power modules, CPUs, amplifiers, and other components with steady heat generation.
When to choose a heat sink:
If moderate performance and reliability are the top priority for your thermal requirements, a traditional heat sink remains the most dependable and cost-effective option to cool your electronics.
Choosing the Right Solution
Here’s a quick comparison summary:
| Category | Vapor Chamber | Heat Pipe | Heat Sink |
|---|---|---|---|
| Heat Transfer Mechanism | 2D phase-change heat spreading (liquid-vapor cycle) | 1D phase-change heat transport along sealed tube | Conduction and convection through solid metal fins |
| Effective Thermal Conductivity | 10,000 – 50,000 W/m·K | 6,000 – 28,000 W/m·K | 150 – 400 W/m·K |
| Heat Spreading Ability | Excellent — uniform across surface | Moderate — linear path | Limited — local conduction only |
| Heat Transfer Distance | Short (within 100 mm) | Long (up to 200 mm) | Very short (direct contact only) |
| Form Factor | Thin, flat plate | Round or flat tube | Solid block with fins |
| Material Options | Copper / Aluminum composite | Copper / Stainless steel | Aluminum / Copper |
| Cost | $$$ (higher unit cost) | $$ (mid-range) | $ (lowest cost) |
| Design Flexibility | Medium — limited shape variation | High — bendable and configurable | Very high — easily machined or extruded |
| Best For | High-power, compact devices (AI servers, GPUs, 5G modules) | Point-to-point heat transport (notebooks, LEDs, automotive sensors) | Cost-sensitive or low-to-moderate power systems |
| Insight | Premium option — use when thermal density justifies cost | Balanced choice — widely available and scalable | Economical standard — ideal for high-volume applications |
Takeaways — Vapor Chamber vs Heat Pipe vs Heat Sink
Effective thermal management isn’t about picking the “best” technology — it’s about finding the right one for your unique design needs.
- Vapor chambers excel in compact, high-power devices— instead of a 40°C temperature rise, you get only 20°C rise.
- Heat pipes offer flexibility and efficiency for directional heat transport.
- Heat sinks provide simplicity and reliability where cost and durability matter most.
By understanding the strengths of these thermal components, you can make smarter design decisions and build electronics that perform better, last longer, and stay cool under different circumstances.
