Managing heat in compact, high-performance electronic systems is an increasing challenge—especially in applications where precise temperature stability directly impacts performance and reliability. Thermoelectric cooler (TEC) modules offer a reliable, solid-state solution for active thermal management, enabling precise and localized cooling without the complexity of traditional mechanical systems. By leveraging the Peltier effect, TEC modules help maintain stable operating conditions for sensitive components such as semiconductors and optical devices.
What is a Thermoelectric Cooler Module?
A thermoelectric cooler (TEC) module is an active thermal management solution that provides precise heating and cooling using solid-state thermoelectric technology. By applying electrical power, the module transfers heat from one side to the other, enabling fast temperature response, accurate control, and stable operation. Reversing the current direction allows the same system to switch between cooling and heating modes.

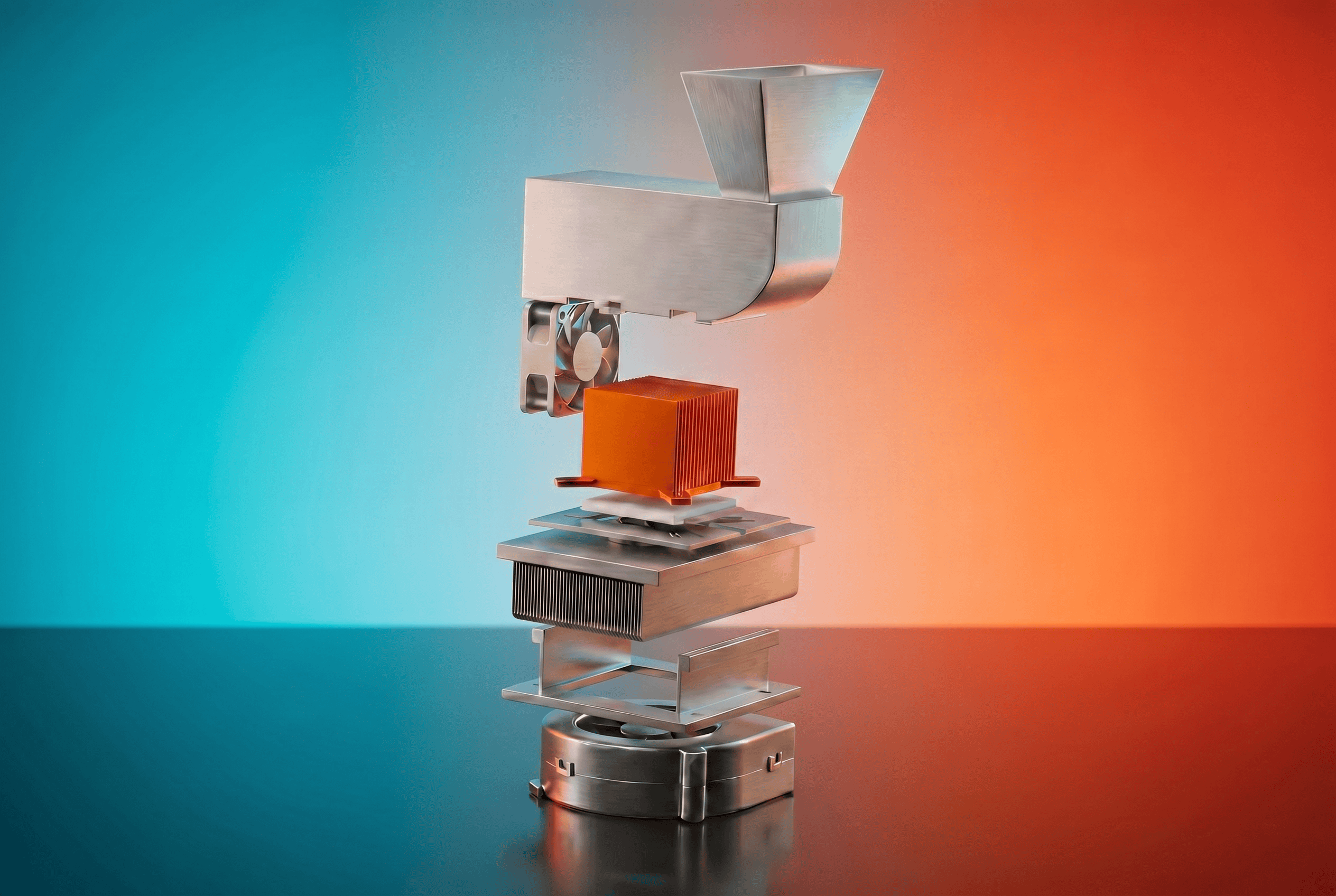

In practical applications, a TEC is not used as a standalone chip, but as part of an integrated thermal solution. By combining TEC elements with components such as heat sinks, fans, or thermal interface materials (TIMs), a complete module can be engineered to address specific thermal challenges. This system-level approach allows for optimized performance in space-constrained, high-precision, or reliability-critical environments where conventional cooling methods may fall short.
How Thermoelectric Cooling Works: The Peltier Effect
This cooling device operates based on the Peltier effect, where an electric current passing through a junction of two dissimilar conductors results in a heat transfer. This process facilitates active thermal management by absorbing heat from a specific component and releasing it into a heat sink on the opposite side. However, unlike passive cooling methods that only dissipate heat based on ambient temperature differences, a Peltier device can lower a component’s temperature below ambient air temperature.
Key Advantages of TEC Modules for Electronic Cooling
Utilizing a thermoelectric chip cooling strategy delivers several mechanical and operational benefits for high-performance systems. These include:
- Precise temperature control. By adjusting the input power, users can maintain temperatures to within fractions of a degree, achieving precision in semiconductor manufacturing, laboratory settings, and other environments where temperature stability is critical.
- Compact and lightweight form factor. These Peltier modules are scalable to very small packages, enabling integration into portable or miniature devices.
- Silent and vibration-free operation. Because the cooling is achieved electronically, these devices operate without the noise or mechanical stress associated with fans or pumps.
- Reversible functionality. Reversing the polarity of the applied current allows the device to switch from cooling to heating, which is vital for maintaining stable internal environments in changing outdoor climates.
- Solid-state reliability. The absence of moving parts contributes to inherently high reliability and long service life, with actual performance depending on operating conditions and system design.
Applications of Thermoelectric Cooler Modules Across Modern Technologies
The ability to achieve localized and precise cooling makes thermoelectric cooling modules a vital component in a range of sectors with specific thermal cycling demands, including:
- Medical equipment. Precise cooling is important for managing temperature-sensitive samples in blood analyzers, PCR machines, and portable medical storage units.
- Telecommunications. Thermoelectric cooling can help keep lasers in 5G and fiber optic networks operating at precise wavelengths.
- Aerospace and defense. Thermoelectric cooling modules are often ideal for cooling infrared sensors, night vision equipment, and flight-critical avionics where reliability and compact size are mandatory.
- Renewable energy. Regulating the temperature of photovoltaic panels and energy storage systems is vital to ensure optimal efficiency.
T-Global: Partners in Thermoelectric Cooling Solutions
At T-Global USA, we serve as your trusted partner in solving complex thermal challenges. We excel at delivering customized thermoelectric cooling module designs that meet your specific mechanical and reliability requirements. Our technical team provides expert guidance early in the process, helping you ensure that your thermoelectric cooling solution maximizes device efficiency and lifespan.
We prioritize agile service, offering rapid prototyping and professional consulting. Whether you are a mechanical engineer developing a server cooling system or a purchasing manager seeking to optimize a thermal supply chain, we deliver the technical depth required to keep your electronics running cool.
Request a quote or sample today to discover how our tailored TEC module solutions can support your application’s thermoelectric cooling requirements.
