Standard Thermal Module
T-Global provides standard thermal module that ensure reliable heat dissipation and stable device performance. By lowering operating temperatures, these modules help prevent thermal throttling, extend the lifespan of electronic components, and even enhance overall performance.

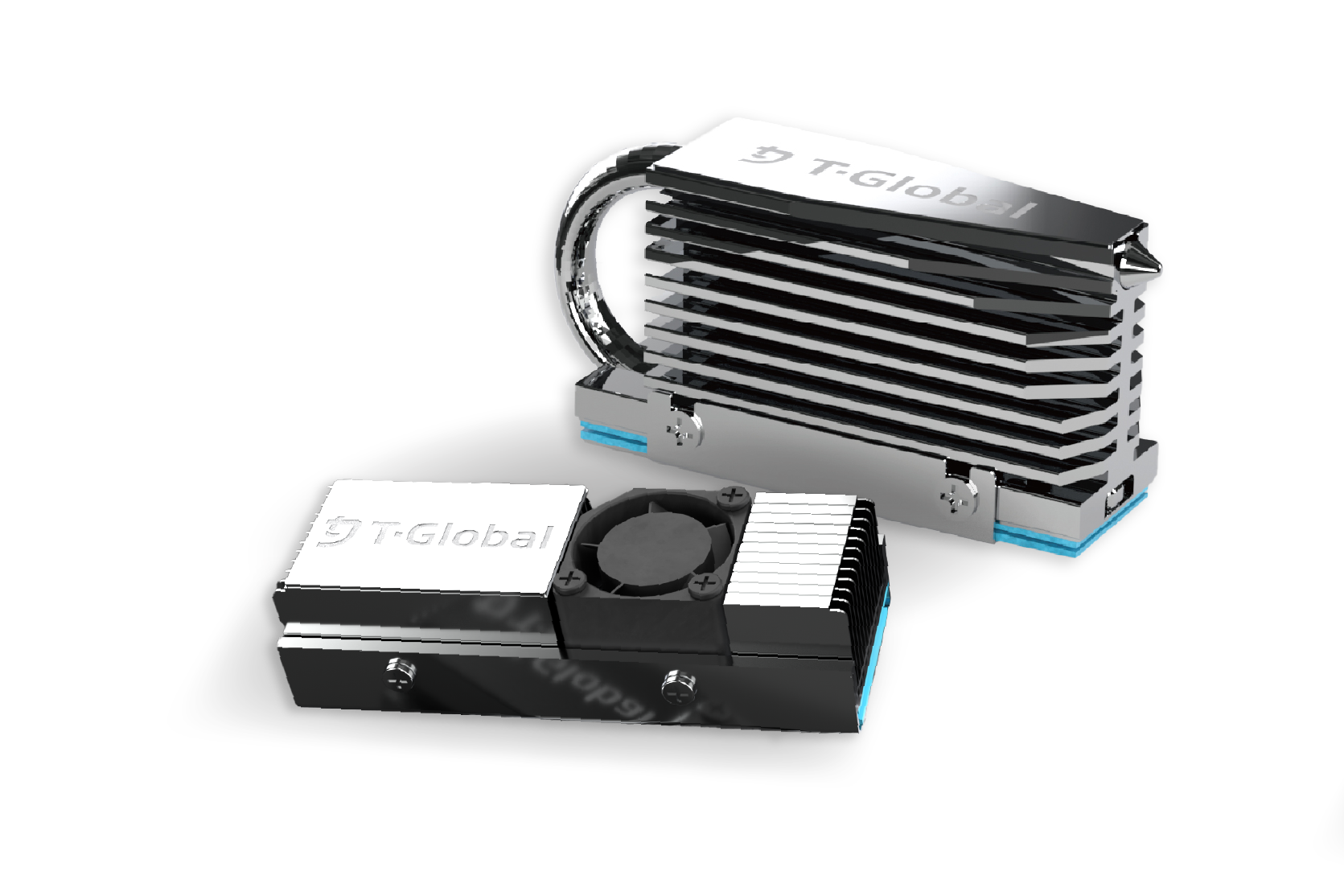

Our current lineup includes M.2 SSD Thermal Modules, which are compact, lightweight, and easy to install for PC. Available in two designs:
-
A passive M.2 SSD for efficient and silent cooling.
-
An active M.2 Fan SSD for stronger thermal performance.
In addition to tailored thermal solutions, our standard thermal modules offer ready-to-use options that balance performance, size, and reliability—making them an ideal choice for high-performance storage devices, PCs, and modern electronics.
Standard Thermal Module

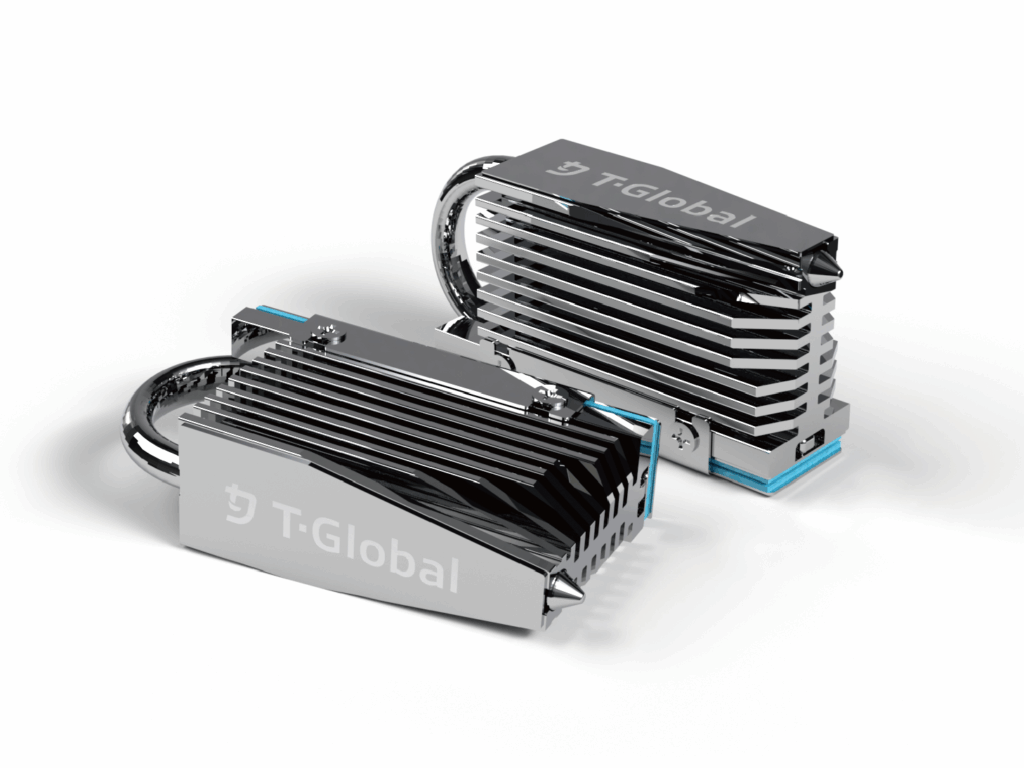

M.2 SSD Thermal Module
- Temperature Reduction
- Maintaining Performance
- Prolonged Lifespan
- Easy Installation
- Improved Cooling Efficiency
Product Description

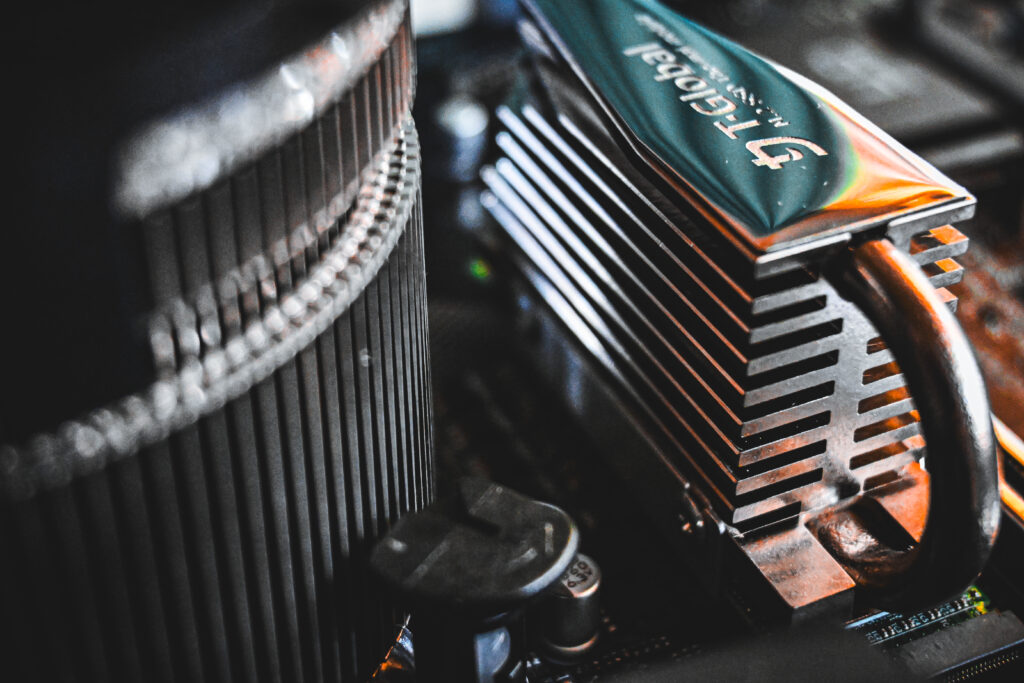

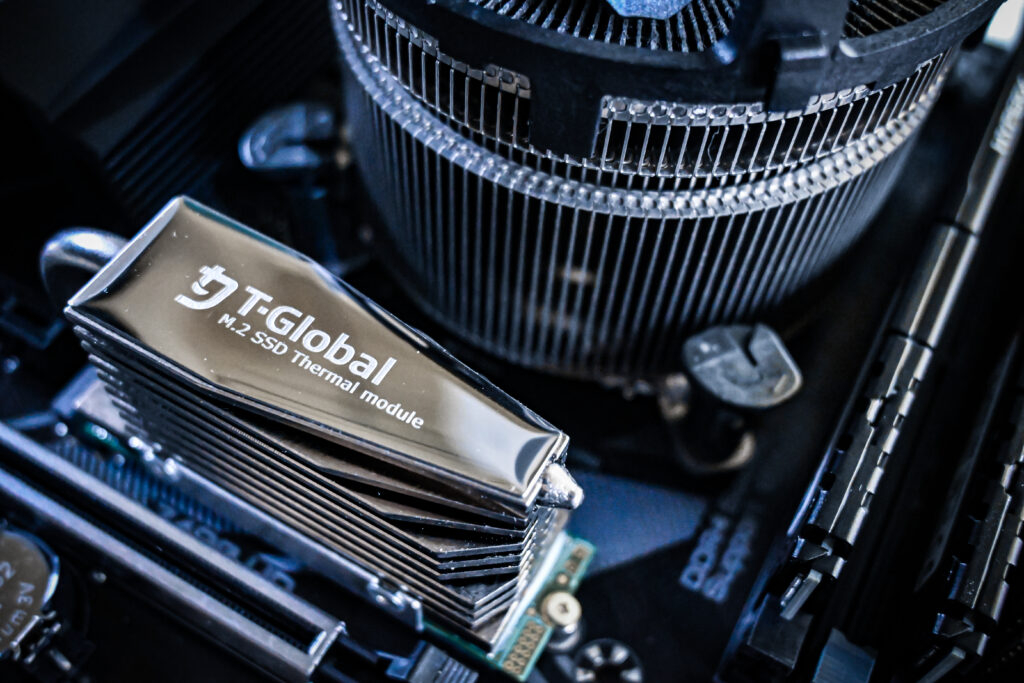

An M.2 SSD Thermal Module is designed to safeguard the performance and durability of your solid-state drive. By efficiently lowering operating temperatures, it minimizes the risk of overheating and thermal throttling, ensuring consistent speed and reliability. The integrated heatsink enhances heat dissipation, helping to prolong the lifespan of internal components. Compact and lightweight, these modules are easy to install and compatible with a wide range of M.2 SSDs. In addition to effective cooling, their sleek design adds a professional touch to any PC build, making them both functional and visually appealing.

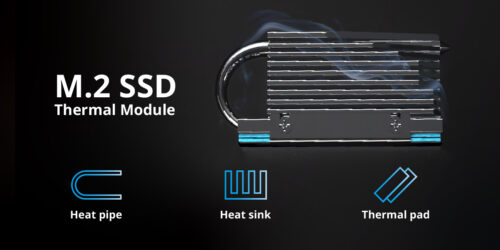

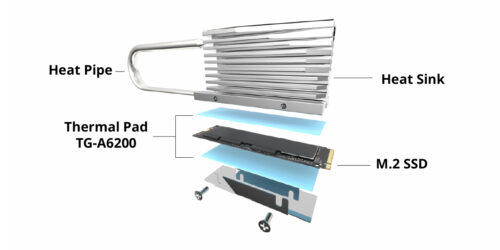

Module Components
Thermal Pad
The 0.5mm TG-A6200 thermal pad (6.2W/m·K) enhances heat transfer by filling gaps between the SSD and heatsink, reducing thermal resistance and extending SSD lifespan with stable performance.
Aluminum Fins
The aluminum fin structure provides excellent heat dissipation, lowering operating temperatures efficiently. Enhanced cooling performance improves the reliability and long-term durability of M.2 SSD thermal modules.
Heat Pipe

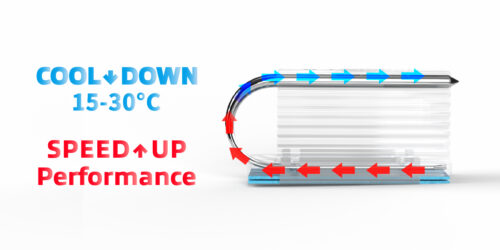

With direct-touch base technology, heat is rapidly transferred into the heat pipes, which are precisely arranged to improve airflow and deliver optimal thermal management for SSD cooling.
Supported Types
- NVME SSD
- Plextor M6e
- NGFF SATA
- Kingston HyperX Predator M.2 SSD
- Intel SSD6/7
- Compatible with single sided/double sided M.2 2280 SSD
- Samsung 970 EVO/950Pro/960EVO/XP941/PM951/PM961S/M951/SM961
Product Description

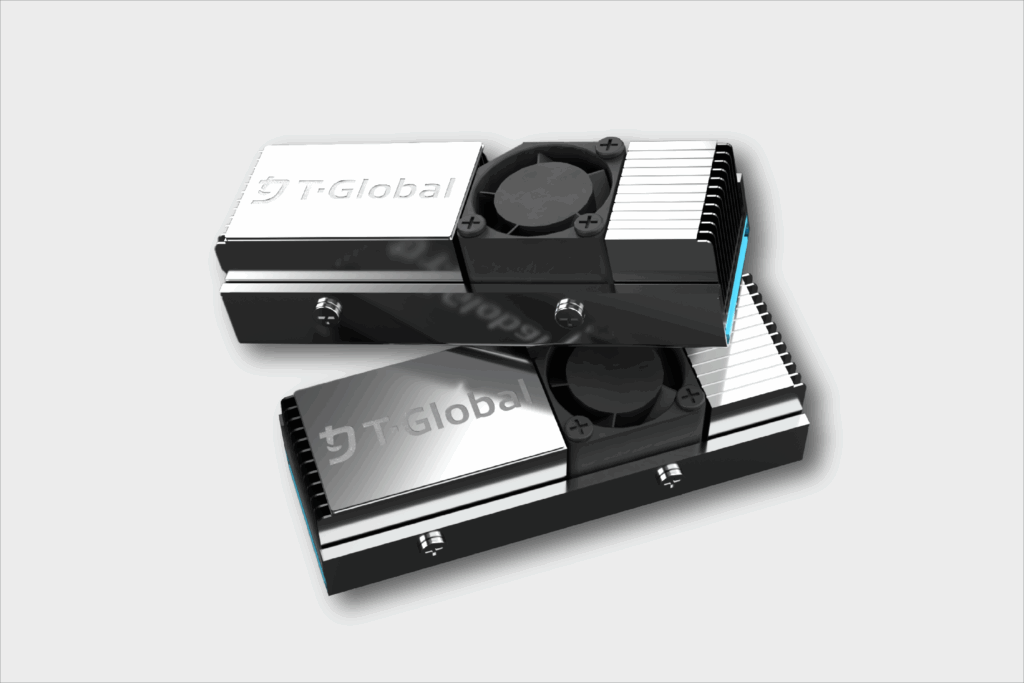

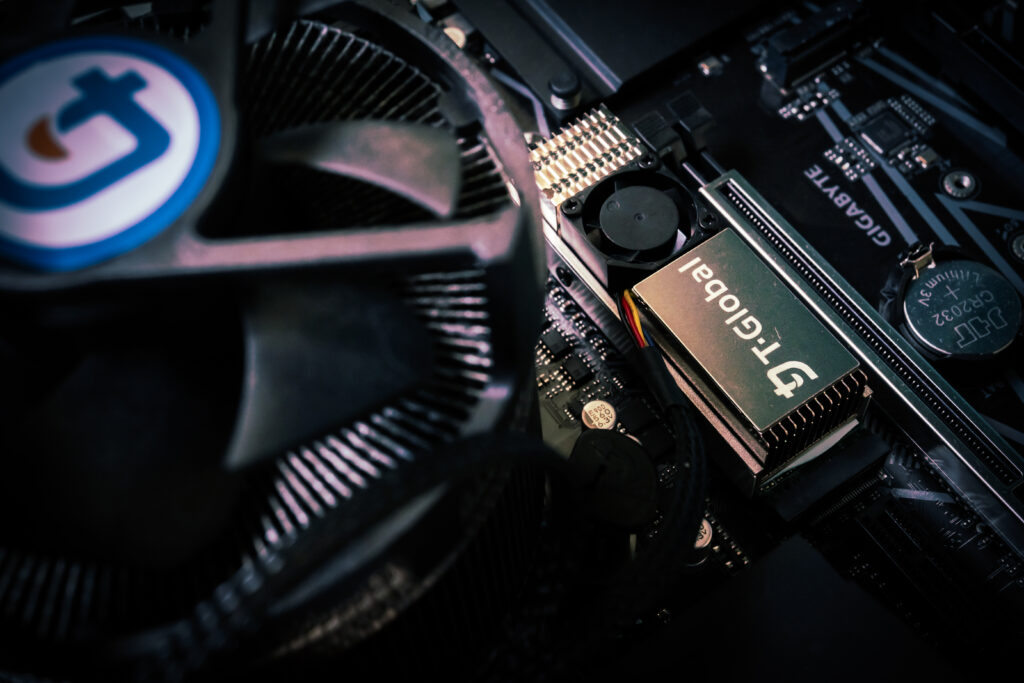

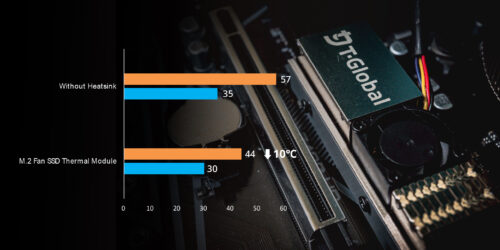

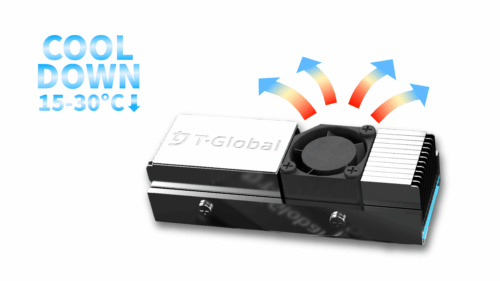

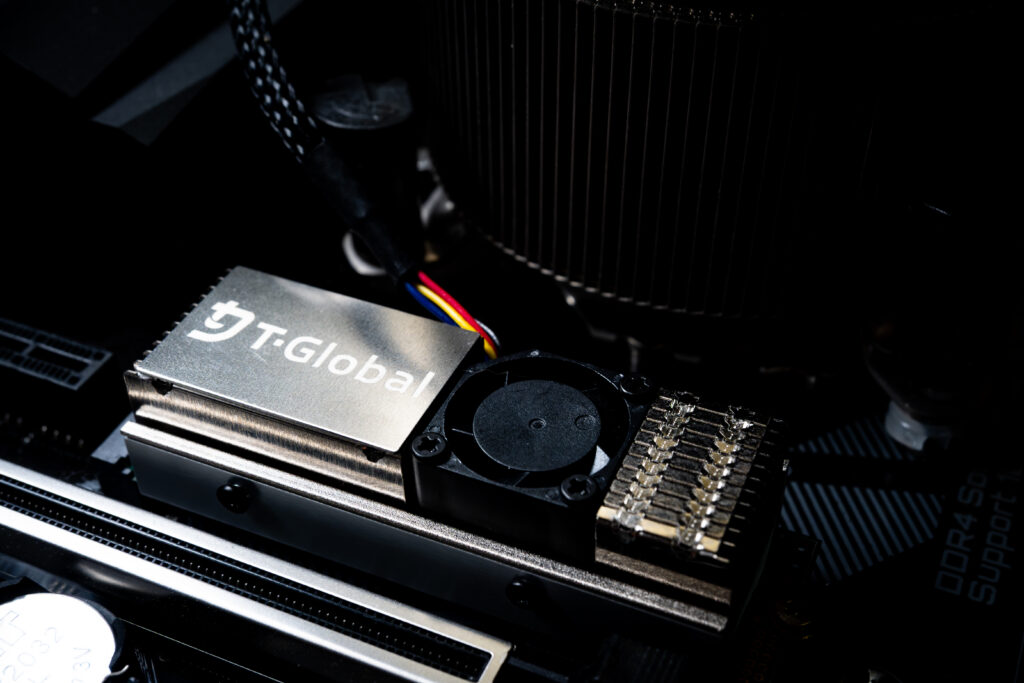

The M.2 Fan SSD Thermal Module is engineered to maximize the performance and lifespan of your M.2 2280 solid-state drive. Featuring an aluminum alloy heatsink and high-speed fan (17,000 RPM, 17 CFM airflow), it effectively lowers SSD temperatures by 15–30℃, minimizing overheating and thermal throttling.
The integrated 1.0mm TG-A6200 thermal pads (6.2W/m·K) ensure efficient heat transfer, while the active cooling fan design delivers stable, long-term reliability. Compact and easy to install with screw mounting, this module is compatible with NVMe, SATA, Intel, Samsung , Kingston, and more. Combining performance cooling with sleek design, it safeguards your SSD in high-performance PC builds.

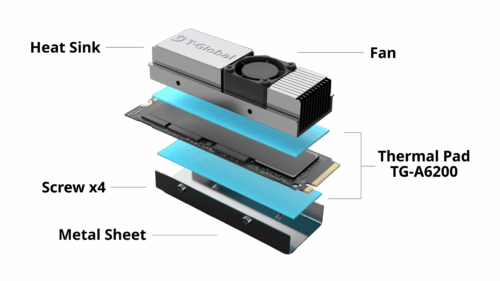

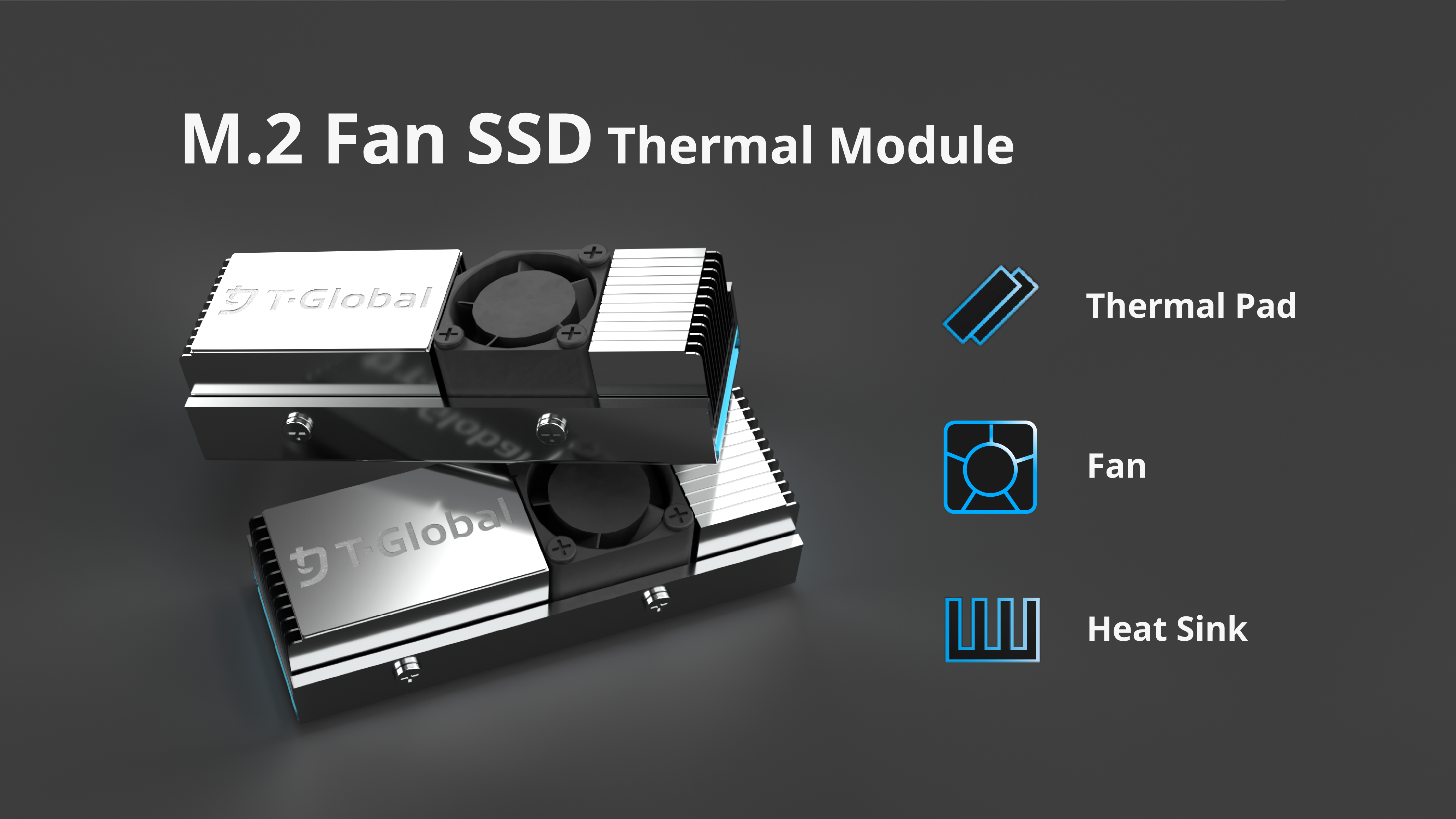

Module Components
Fan
The high-speed cooling fan (17,000 RPM, 17 CFM airflow) actively drives heat away from the SSD. By reducing heat buildup, it prevents throttling and maintains stable performance.
Aluminum Heat Sink
Aluminum fins provide efficient heat dissipation, lowering SSD temperatures. This enhances cooling efficiency and supports reliable long-term durability.
Thermal Pad
The 1.0mm TG-A6200 thermal pad (6.2W/m·K) improves heat transfer by filling gaps, reducing resistance, and extending SSD lifespan with stable performance.
Supported Types
- NVME SSD
- NGFF SATA
- Kingston HyperX Predator M.2 SSD
- Intel SSD6/7
- Compatible with single sided M.2 2280 SSD
- Samsung 970 EVO/950Pro/960EVO
