Graphite

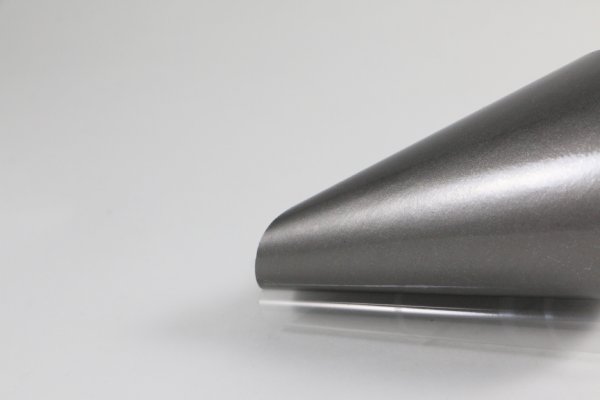

T-Global's natural and synthetic graphite sheets deliver exceptional thermal conductivity (400-1500 W/m·K) and flexibility. Designed for EVs, energy storage, and consumer electronics, they provide ultra-high performance in a lightweight, thin design, ensuring efficient heat dissipation in compact, high-power devices.
Graphite
Thermal Conductivity of XY axis (TC-XY)
Operating Temperature (OT)
Thermal Conductivity of Z axis (TC-Z)
Thickness (T)
Density (D)
Natural Graphite
| Properties | Thermal Conductivity (XY axis) | Thermal Conductivity (Z axis) | Thickness | Operating Temperature | Density | |||
|---|---|---|---|---|---|---|---|---|
| Unit | W/m•K | cal/cm·sec·°C | W/m•K | cal/cm·sec·°C | mm | °C | g/cm³ | |

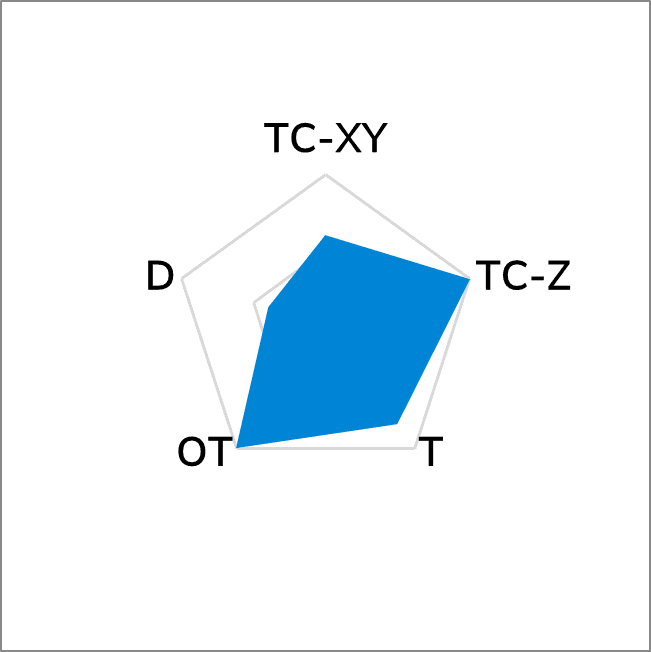

 T62 Natural Graphite Sheet | 400 | 0.956 | 20 | 0.0478 | 0.13 | -40~+400 | 1.5 | Quote & SampleDatasheet |

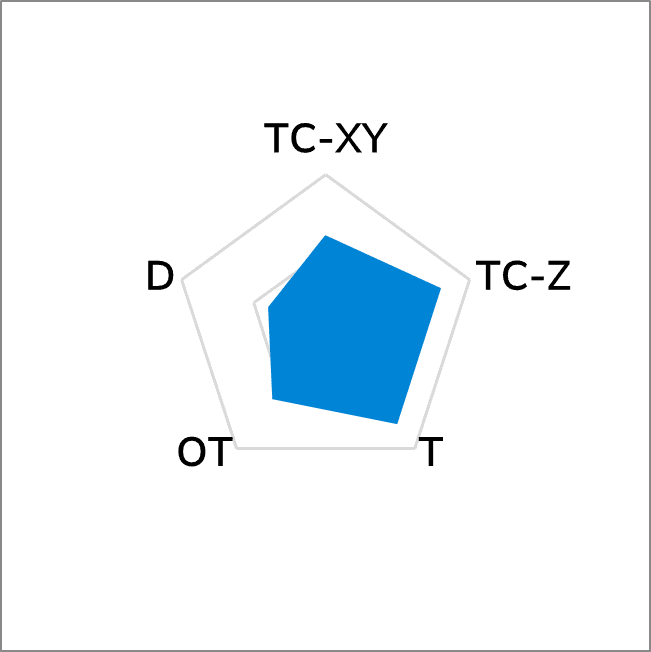

 T62-1 Natural Graphite Sheet | 400 | 0.956 | 15 | 0.03585 | 0.16 | -30~+100 | 1.5~1.8 | Quote & SampleDatasheet |

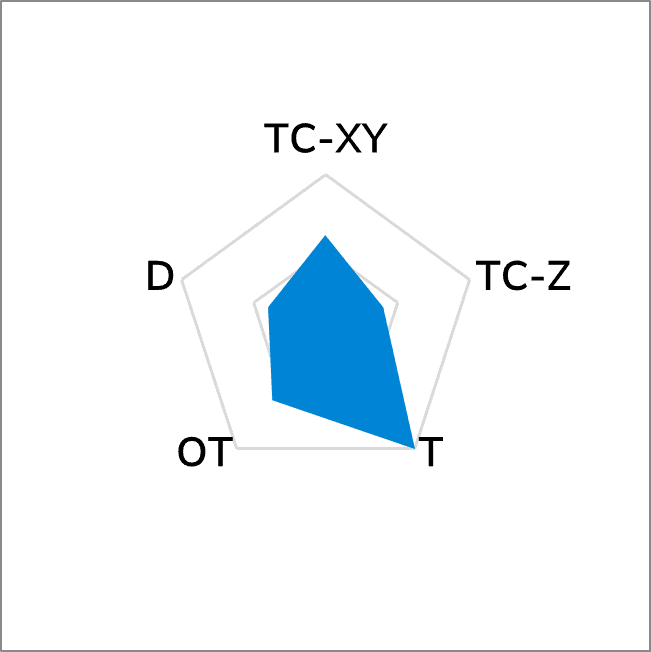

 T62-2 Natural Graphite Sheet | 400 | 0.956 | 5 | 0.01195 | 0.2 | -30~+100 | 1.5~1.8 | Quote & SampleDatasheet |
| Test Method | AC Calorimeter | Laser Flash | Micrometer | ASTM D792 | ||||
Artificial Graphite
| Properties | Thermal Conductivity (XY axis) | Thermal Conductivity (Z axis) | Thickness | Operating Temperature | Density | |||
|---|---|---|---|---|---|---|---|---|
| Unit | W/m•K | cal/cm·sec·°C | W/m•K | cal/cm·sec·°C | mm | °C | g/cm³ | |

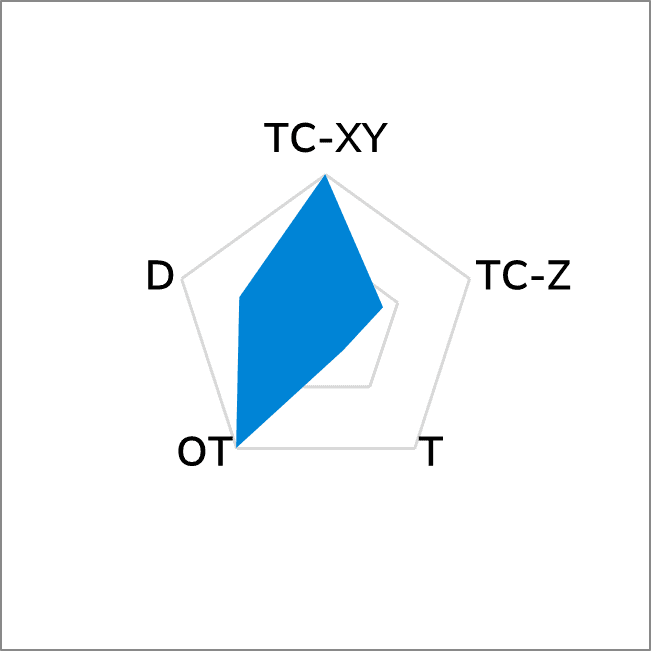

 T68 Artificial Graphite Sheet | 1500 | 3.585 | 5 | 0.01195 | 0.025 | -40~+400 | 2.1 | Quote & SampleDatasheet |

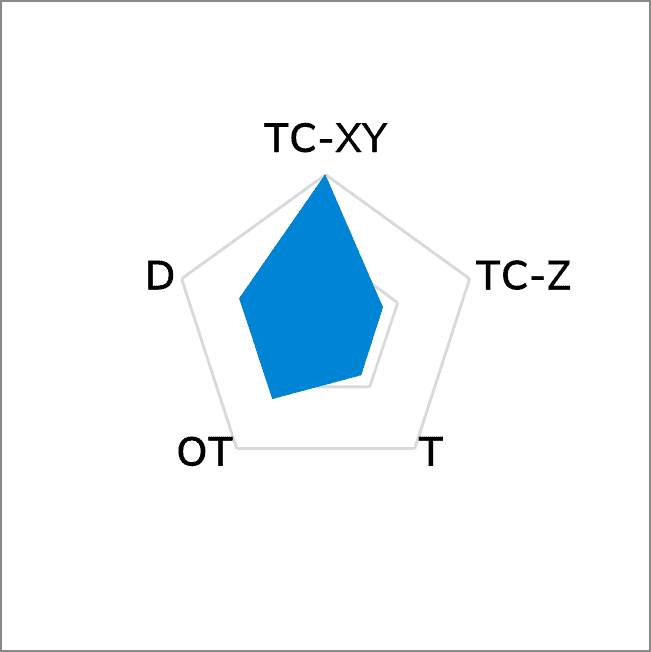

 T68A Artificial Graphite Sheet | 1500 | 3.585 | 5 | 0.01195 | 0.035/0.055 | -40~+100 | 2.1 | Quote & SampleDatasheet |
 T68AP Artificial Graphite Sheet | 1500 | 3.585 | 5 | 0.01195 | 0.045/0.085 | 80~100 | 2.1 | Quote & SampleDatasheet |

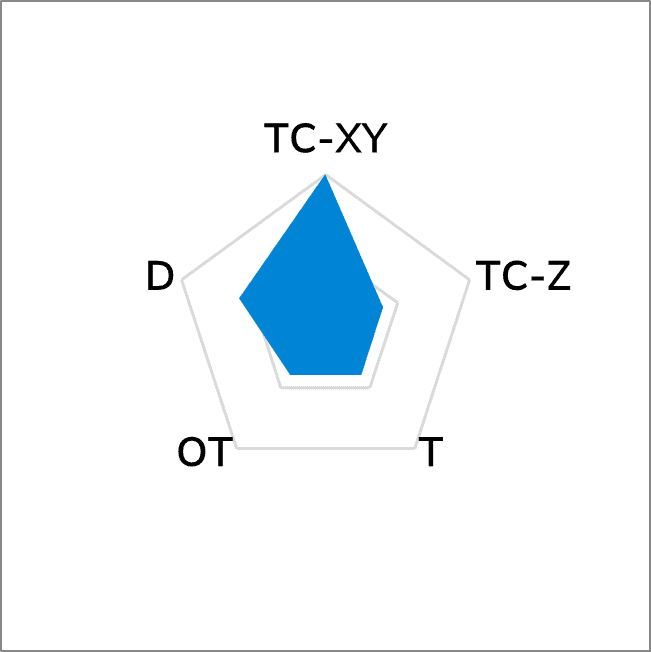

 T68APF Artificial Graphite Sheet | 1500 | 3.585 | 5 | 0.01195 | 0.045/0.085 | 80~100 | 2.1 | Quote & SampleDatasheet |
| Test Method | AC Calorimeter | Laser Flash | Micrometer | ASTM D792 | ||||
