Flexible Absorbent Material
T-Global’s ultra-thin, flexible absorbent materials provide high surface resistance (10⁶-10⁹ ohms) and non-conductive adhesive backing (UL recognized).
Designed to prevent resonance and suppress coupling, they are easy to cut and apply, ideal for notebooks, PCs, mobile communication devices and NFC (Near Field Communication).
Designed to prevent resonance and suppress coupling, they are easy to cut and apply, ideal for notebooks, PCs, mobile communication devices and NFC (Near Field Communication).

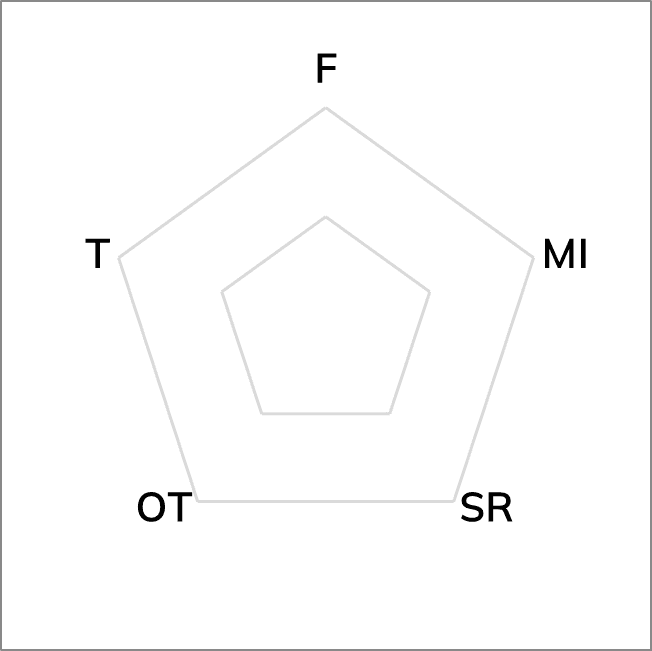

Flexible Absorbent Material
Frequency (F)
Magnetic Inductivity (MI)
Surface Resistance (SR)
Operating Temperature (OT)
Thickness (T)
| Properties | Frequency | Magnetic Inductivity (u'@1MHz) | Surface Resistance | Operating Temperature | Thickness | |
|---|---|---|---|---|---|---|
| Unit | GHz | Ohm | °C | mm | ||

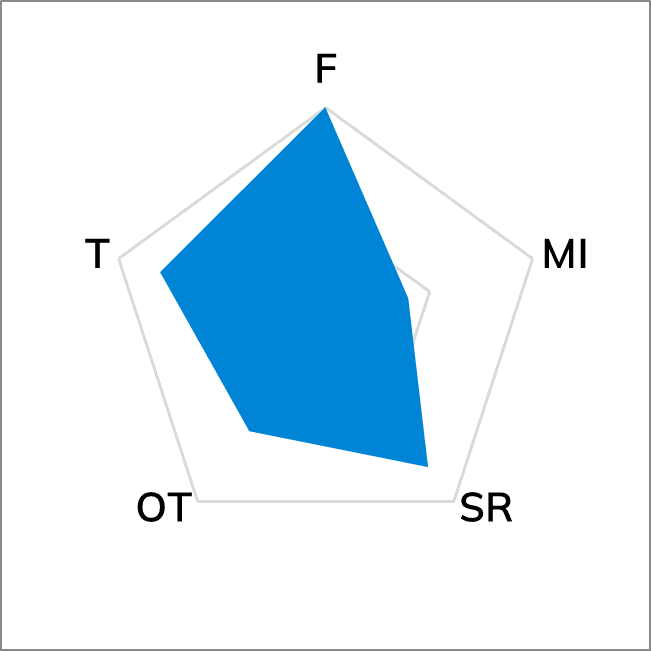

 TG-FAM1 Flexible Absorbent Material | 0.001~18 | 25 | 1x106 | -40~+85 | 0.12~2.5 | Quote & SampleDatasheet |

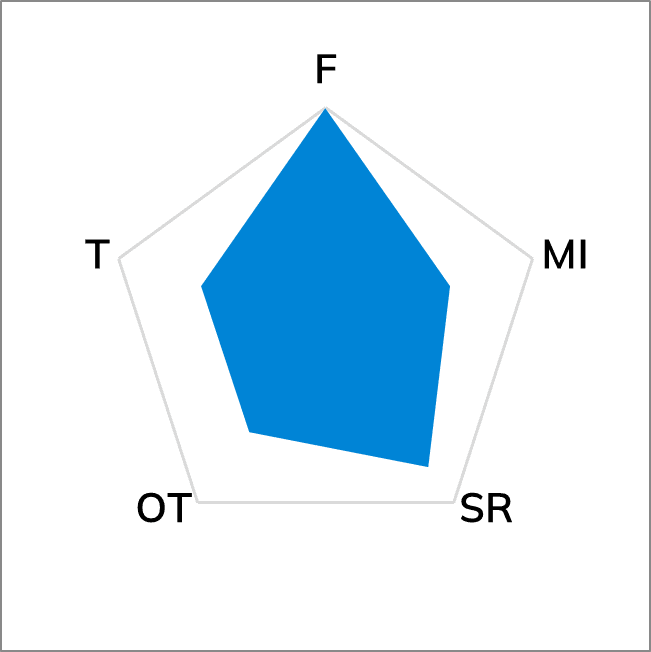

 TG-FAM3 Flexible Absorbent Material | 0.001~18 | 50 | 1x106 | -40~+85 | 0.25/0.5/0.75 | Quote & SampleDatasheet |

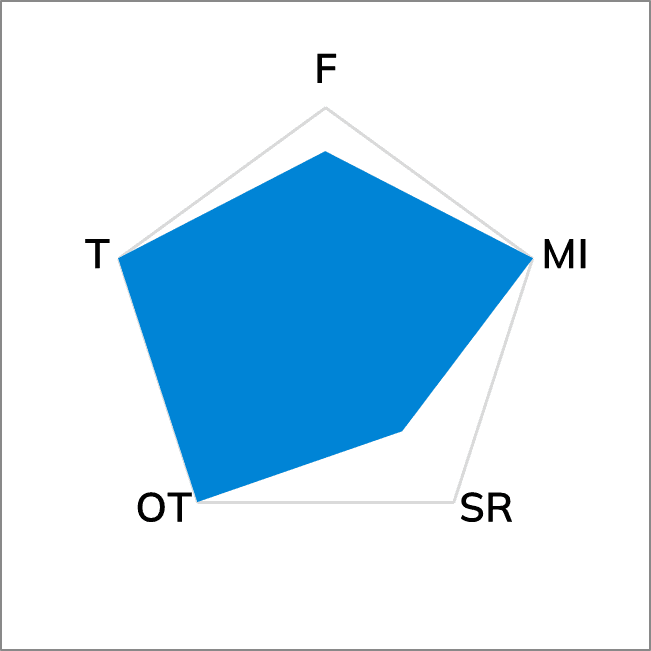

 TG-FAM6 Flexible Absorbent Material | 0.001~9.0 | 170 | 1x105 | -40~+155 | 0.05/0.1/0.2/0.3/0.5 | Quote & SampleDatasheet |

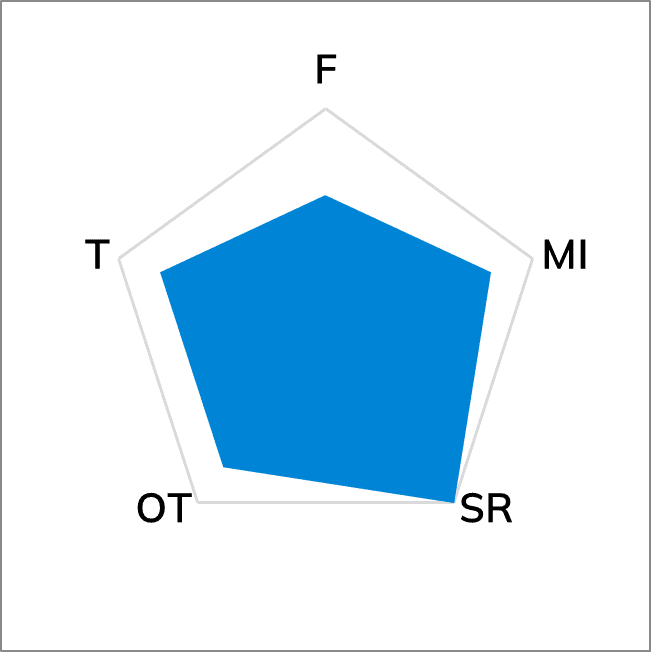

 TG-FAM7 Flexible Absorbent Material | 0.001~3.0 | 140 | 1x109 | -30~+120 | 0.08/0.12/0.22 | Quote & SampleDatasheet |
| Test Method | ||||||
